The Ubiquiti UniFi U6-Pro is a high-performance dual-band WiFi 6 (802.11ax) access point intended for enterprise, campus, or large office deployments. Its design emphasizes capacity, throughput, and scalability in dense client environments. The device is typically ceiling or wall mounted, and integrates into the UniFi network ecosystem for centralized management (via UniFi Network Controller / UniFi Cloud, etc.).
It supports a large number of concurrent clients with modern features like MU-MIMO, OFDMA, and support for full 160 MHz channel width (in ideal conditions). The U6-Pro is positioned between more basic models (like U6-Lite) and more advanced units (U6-LR, U6-Enterprise, etc.), balancing performance and cost.
Here is one seller’s listing:

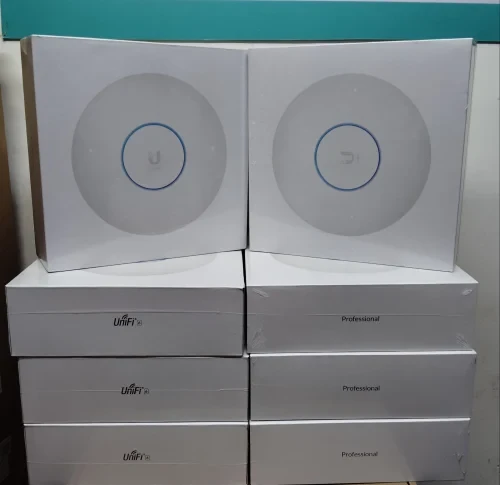

Ubiquiti U6 Pro Dual Band WiFi 6 Access Point
Some of the standout features and capabilities are:
Dual-band WiFi 6 (802.11ax)
It supports both 2.4 GHz and 5 GHz bands simultaneously, with advanced features like MU-MIMO and OFDMA to improve efficiency. Tech Specs+2UniFi+2
High aggregate throughput
The combined throughput (2.4 GHz + 5 GHz) is up to approximately 5.3 Gbps under ideal conditions. WiFi Stock+4Geizhals+4B&H Photo Video+4
Spatial streams / MIMO design
5 GHz band: 4×4 (MU-MIMO) Tech Specs+3UniFi+34gon.co.uk+3
2.4 GHz band: 2×2 (MU-MIMO) 4gon.co.uk+2UniFi+2
Support for wide channel width: 160 MHz
Under ideal, interference-free conditions, the U6-Pro can be configured to use 160 MHz channels in the 5 GHz band, boosting peak throughput. 4gon.co.uk+2UniFi+2
High client density
It is rated to support 300+ concurrent clients (devices) per access point. CDW+34gon.co.uk+3UniFi+3
Guest traffic isolation & QoS
The U6-Pro supports guest network isolation (segregating guest traffic from internal systems) and per-user rate limiting / QoS settings to manage bandwidth. 4gon.co.uk+1
PoE power / management & interface
It’s powered via IEEE 802.3at (PoE+). It has one Gigabit Ethernet RJ45 port for data + PoE.
Centralized management via UniFi
Like other UniFi APs, it’s managed via the UniFi Controller / UniFi Network software, which offers configuration, monitoring, analytics, etc.
Robust physical & environmental design
It supports wall or ceiling mounting, has modest power consumption, and is designed to operate across a wide temperature and humidity range.
Here is a consolidated, detailed specifications table based on Ubiquiti’s datasheet and public sources:
| Category | Specification |
|---|---|
| Model | U6-Pro (UniFi U6 Pro) |
| WiFi Standards | 802.11 a/b/g/n/ac/ax (WiFi 6) |
| Bands & MIMO | 5 GHz: 4×4 MU-MIMO 2.4 GHz: 2×2 MU-MIMO |
| Max Throughput (Aggregate) | ≈ 5.3 Gbps (combined) |
| Typical Data Rates per Band | 2.4 GHz: up to ~ 573.5 Mbps 5 GHz: up to ~ 4.8 Gbps (with 4×4 & 160 MHz) |
| Client Capacity | 300+ concurrent clients |
| Ethernet / Ports | 1 × Gigabit RJ45 (PoE+ powered) |
| Power / Voltage | 802.3at PoE+ Supported voltage: 44 – 57 V DC Maximum power consumption: ~ 13 W |
| Transmit Power | 2.4 GHz: ~ 22 dBm 5 GHz: ~ 26 dBm |
| Antenna Gain | 2.4 GHz: ~ 4 dBi 5 GHz: ~ 6 dBi |
| Physical / Mechanical | Diameter: ~ 197 mm Height: ~ 35 mm Weight (without mount): ~ 460 g With mount: ~ 600 g Enclosure: plastic Mounting: SGCC steel for components, wall/ceiling included |
| Operating Conditions | Temperature range: –30 °C to 60 °C Humidity: 5% to 95% non-condensing |
| Certifications / Regulatory | CE, FCC, IC |
| Other Features | Guest traffic isolation VLAN (802.1Q) support Per-user rate limiting / QoS BSSID support (8 per radio) Zero-wait DFS support (in upcoming firmware) |
| LED / Indicators | LED ring (white / blue) |
| Datasheet / Product Info | Ubiquiti U6-Pro datasheet PDF and official product page |
